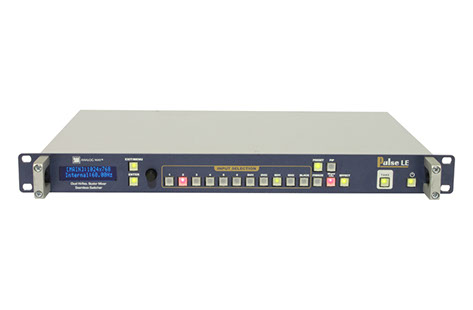

Dual Scaler Seamless Switcher unit + Preview

Cut/Fade/Luma/Chroma Key/PIP

10 inputs including 2 x 3G/HD/SD-SDI

HDCP Compliant

Can be controlled by front panel, Remote Control Software or 2

different Remote Consoles

Dual Scaler Hi-Resolution Mixer Seamless Switcher for Large Screen Projections,

Conference Rooms and Houses of Worship


Pulse LE at a glance Key features

Operating modes

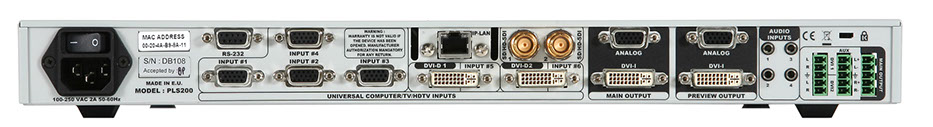

10 inputs

• 2 DVI inputs

• 6 Universal Analog Inputs

• 2 x 3G/HD/SD-SDI

• SDTV, EDTV, HDTV and Computer

formats up to 2K

• Full digital In/Out Processing

• 1 Operation mode: Mixer

• Live Background and 1 Live PIP

• PIP: Pan & Zoom resizing up to 1000%

• PIP Open/Close Animation

• Transitions: Fade (Dissolve), Cut, Clean Cut

• PIP Border (Edge: 1 Color, 1 Width, 1 Height)

• Smooth Move effect

• Chroma/Luma Key/DSK Title

• DSK on Analog & Digital Inputs

• New Preset: Split Screen

• 6 Preset Layouts


• 2 Analog and Digital

Outputs: Main & Preview

• Computer Formats up to 2K
