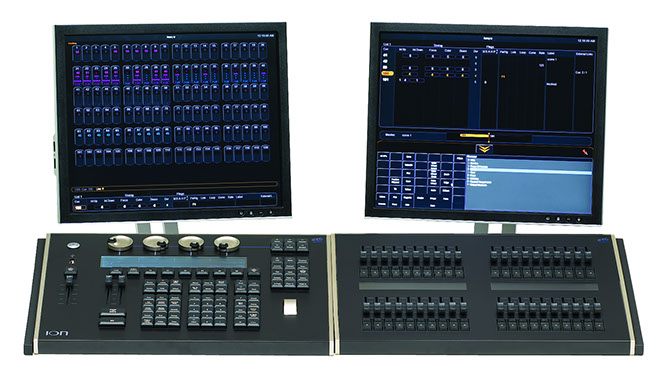

The ease, power and operational style of larger Eos®-family products in a small, affordable package. Ion's compact footprint - only 19" wide- is the perfect solution for space-challenged environments and small venues. Providing fully integrated control of media servers and conventional, LED, and moving lights, Ion® packs a punch.



Highly intuitive and simple to use, Ion will satisfy the needs of beginners and pros alike. But you don't need a PhD in Ion to use it! Start with the everyday (channel 5 at full) and let the full potential of Ion - like the powerful effects package, marking and timing functions - unfold with your experience.





S P E C I F I C AT I O N S

SYSTEM CAPACITY

1,024 outputs, upgradeable in 512 increments

16,000 Channels

10,000 Cues

999 Cue Lists

999 Submasters

4 x 1000 Palettes (Intensity, Focus, Color, Beam)

1000 Presets (all palette)

1000 Groups

1000 Effects (relative, absolute or step)

1000 Macros

Supports two external DVI monitors or one Display Port monitor at 1280x1024 minimum resolution or multi-touch screen control

Solid-state hard drive

USB ports for flash drives, pointing devices, keyboards

INTERFACES

2 DMX-512 Ports (RDM ready)

Ethernet (ETCNet2™, Net3™,Artnet and Avab UDP output protocols)

Contact Closure triggers via D-Sub connector

Two DVI connectors support two external DVI displays(1280x1024) with optional touch- or multi-touch screen control

One Display Port connector

Seven multipurpose USB ports

Phone Remote

Net 3 Radio Focus Remote

MIDI In/Out (Timecode, Show Control)

Additional MIDI Timecode, Show Control through Gateway

SMPTE Timecode through Gateway

Additional contact closure (12 analog inputs, 12 SPDT contact outputs, RS-232) through Gateway

One eSATA port
